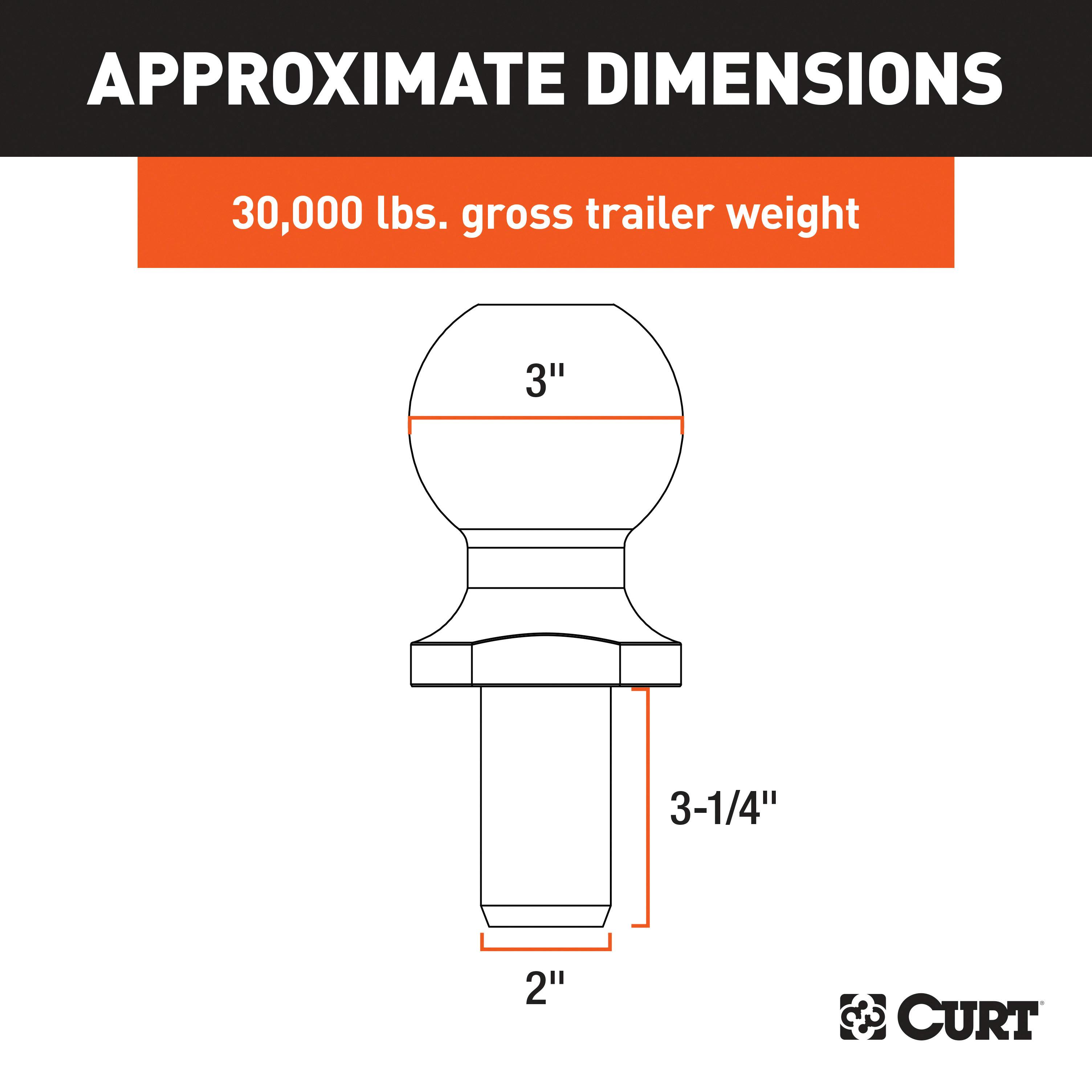

CURT 40089 Raw Steel Trailer Hitch Ball, Gooseneck, 30,000 lbs, 3-Inch Diameter, 2 x 3-1/4-Inch Shank
When you need towing strength unlike anything your average trailer ball can provide, you need something that goes beyond conventional means. CURT 3" trailer balls are unparalleled in their towing capacity and design. With a wide 3" ball diameter, they offer a solid mounting place for your trailer coupler and peace of mind down every road. CURT 3" trailer hitch balls weigh in with a ball capacity of 30,000 lbs. This means they are capable of towing virtually any trailer your class 5 trailer hitch and ball mount can tow. They are also ideal for gooseneck hitch applications. The CURT 3" tow ball comes with a 2" shank diameter for added structural strength and a raw steel finish, giving it a tough layer protection against the stress of pulling large loads. Whether its commercial machinery, industrial supplies, construction equipment or farming materials, these trailer balls are built to thrive in heavy-duty applications (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Also, to give them an added advantage, CURT 3" trailer balls are heat-treated and feature coarse threads. To make sure our trailer balls are fit to take on the CURT name, we put them through strenuous testing. Not only does this ensure they are capable of performing at their listed capacities, but it also gives you the confidence you need to tow that trailer wherever the highway leads. Our 3" trailer balls are made for performance and endurance and meet U.S. VESC specifications for your safety.
- Fits 3" couplers and accepts up to 30,000 lbs. GTW
- Ideal for gooseneck and custom, heavy-duty towing applications
- Constructed from high-strength raw steel
- Heat-treated for optimum wear resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Tested for safety to meet U.S. VESC V-19 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Information:
Limited lifetime warranty (one-year finish, one-year parts)
Application Summary:
| Year |
Make/Model |
| CURT |
40089 Raw Steel Trailer Hitch Ball, Gooseneck, 30,000 lbs, 3-Inch Diameter, 2 x 3-1/4-Inch Shank |
| Attributes |
| ASIN |
B00KC6VBDW |
| Ball Capacity |
30,000 LBS, 30,000 LBS |
| Ball Diameter |
3 IN, 3.000 in. |
| Ball Diameter (in.) |
3 |
| Ball Shank Diameter |
2.000 in. |
| Ball Shank Diameter (in.) |
2 |
| Box Height in Inches - XA |
2, 2 |
| Box Length in Inches - XA |
7, 7 |
| Box Width in Inches - XA |
4, 4 |
| California Proposition 65 |
Yes |
| Color |
Raw Steel, Raw Steel |
| Container Cases Qty - XA |
660 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
10 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
3960 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight Lbs - XA |
35200 |
| Country of Origin (Primary) |
CN |
| Finish |
Raw, RAW |
| Finish - XA |
Raw, RAW |
| Gross Load |
30000 lbs. |
| Gross Load (lbs.) |
30000 |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Item Class - XA |
OBS, OBS |
| Item Height - XA |
0.000, 0.000 |
| Item Length - XA |
0.000, 0.000 |
| Item Width - XA |
0.000, 0.000 |
| Life Cycle Status Code |
Available to Order |
| Long Description |
3" Raw Trailer Ball, 2" Shank, 30K Capacity |
| Master Case Height Inches - XA |
7.000, 7.000 |
| Master Case ITF14 |
60612314400890, 60612314400890 |
| Master Case ITF14 - XA |
60612314400890, 60612314400890 |
| Master Case Length Inches - XA |
8.500, 8.500 |
| Master Case Qty - XA |
6, 6 |
| Master Case Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Master Case Weight Lbs - XA |
53.000, 53.000 |
| Master Case Width Inches - XA |
6.500, 6.500 |
| Material - XA |
FORGED STEEL, FORGED STEEL |
| Mount Type Description - XA |
Blank, Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Case Per - XA |
66, 66 |
| Pallet Case Per Layer - XA |
22, 22 |
| Pallet Cases Per - XA |
66, 66 |
| Pallet Cases Per Layer - XA |
22, 22 |
| Pallet Layer of Cases - XA |
3, 3 |
| Pallet Qty - XA |
6.000, 6.000 |
| Pallet Total Height Inches - XA |
25.000, 25.000 |
| Pallet Total Weight Per - XA |
3520.000, 3520.000 |
| Parcel Allowed - XA |
Yes, Yes |
| Product Weight - XA |
0.000, 0.000 |
| Rate Class - XA |
70.0, 85.0 |
| Retail Height - XA |
3.500, 3.500 |
| Retail Length - XA |
7.750, 7.750 |
| Retail Width - XA |
3.500, 3.500 |
| Sales Family Code - XA |
ACCES, ACCES |
| Sales Family Description - XA |
ACCESSORIES, ACCESSORIES |
| Sales Group Description - XA |
TRAILER BALLS, TRAILER BALLS |
| SDR Required Flag |
N |
| Shank Diameter |
2, 2 |
| Shank Length |
3 1/4 IN, 3.500 in. |
| Shank Length (in.) |
3.5 |
| Shank Rise |
0 IN, 0 IN |
| Shipping Weight - XA |
11.700, 11.700 |
| Side Application Type Description - XA |
Blank, Blank |
| Tariff 301 - XA |
Yes, Yes |
| Torque |
4550 FT LB, 4550 FT LB |
| Torque Capacity |
4550 ft/lbs. |
| Torque Capacity (ft/lbs.) |
4550 ft/lbs. |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Time |
1 |
| GTIN |
00612314400898 |
